Description

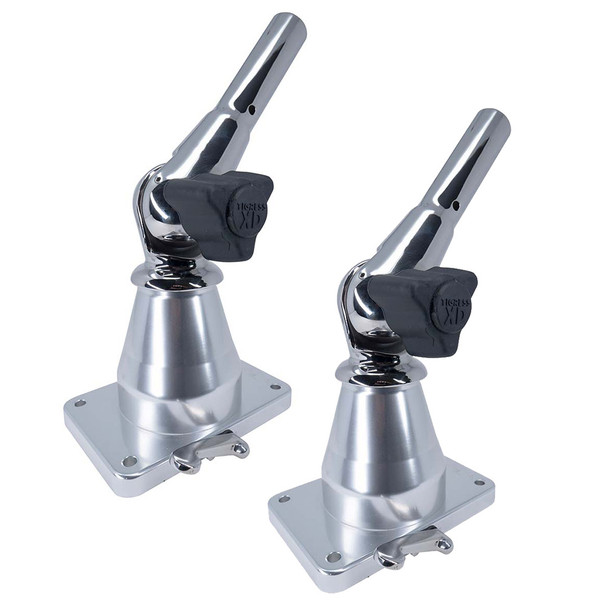

XD Bay Series Top Mount
Features:
- For use on sport fishing boats up to 40 feet
- Accepts all Tigress XD 1-1/8” butt diameter Outriggers
- 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
- Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
- 24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
- User-friendly Side Operating Lever
- Large ‘XD’ Aluminum 14.5mm thick baseplate with four corner mounting
- 5/16” through x 3.000” x 5.000” 4-bolt pattern
- Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
- Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
- Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
- 3-Year Limited Warranty
Manufacturer : Tigress
Manufacturer Part No : 88870
UPC : 661033888708
