Description

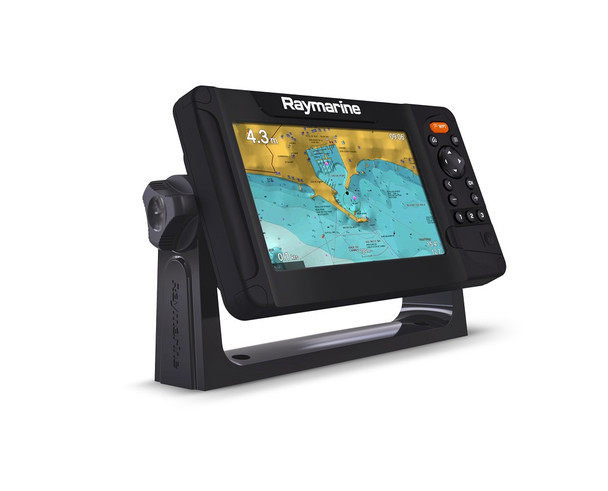

Raymarine Element 7S 7.0" MFD with LightHouse NC3 United States Chart with Fishing Hot Spots
Model: E70531-00-102- Support for Raymarine LightHouseâ„¢ charts, Navionics, and C-MAP
- Safely navigate busy waterways with an optional Quantumâ„¢ wireless radar and AIS receiver
- Built-in High CHIRP sonar for depth and bottom contour imaging
- Map uncharted areas with Raymarine RealBathyâ„¢ personal sonar mapping
- Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
- From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating
- An oversized waypoint key for quick and easy marking of your favorite locations
- Three user-programmable quick keys to access your favorite pages with one button push
- Live menus let you customize charts while seeing the navigation display change in real time
- Category-leading quad-core processor delivers fast chart redraw and responsive performance
- Fast and accurate 10hz GPS/GNSS sensor
- Rugged design and backed by Raymarine’s three-year warranty (product registration required)
The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.
Specifications| Display Size | 7.0"" Optically Bonded LCD |
| Display Resolution | 800 x 480 WVGA |
| W x H x D (mm) | (9.5 x 5.3 x 2.4 inches) |
| Product Weight (lbs) | 3.0 |
| Voltage | 12V DC (8V to 16V DC) |
| Power Consumption (max 12V DC) | 15 Watts |
| GNSS / GPS | Built-in GPS/GLONASS |
| Sonar Type (Built-in) | Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers |
| Sonar Depth | CHIRP Sonar = 274m (900 feet) |
| Radar | Quantum wireless CHIRP compatible Wi-Fi only connection |
| Doppler Radar | N/A |
| MARPA | N/A |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| Supported NMEA2000 Networking | INPUT: NMEA2000 Compatible Engines (Max 2) - NMEA2000 Compatible Tank Sensors (Max 4) - Heading Sensor (for Chart Stabilization) |
| SeaTalkng | Requires A06045 DeviceNet female (F) adapter cable - 400mm |
| Wi-Fi | WiFi - 802.11 b / g / n |
| Cartography | Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store. |
| Tides & Currents | Requires LightHouse LNC2, Navionics or *C-MAP |
| Sonar Mapping | Raymarine RealBathy and Navionics SonarChart Lice |
| Waypoint / Routes / Tracks | 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts |
| External Memory | 1 x microSD slots |
| Dimensions | 240 x 135 62mm |
What's in the Box:
- Element display
- Surface mount gasket
- Suncover
- Trunnion knobs x2
- Documentation pack
- Trunnion bracket
- Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut)
- Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).
- LightHouse NC3 microSD
