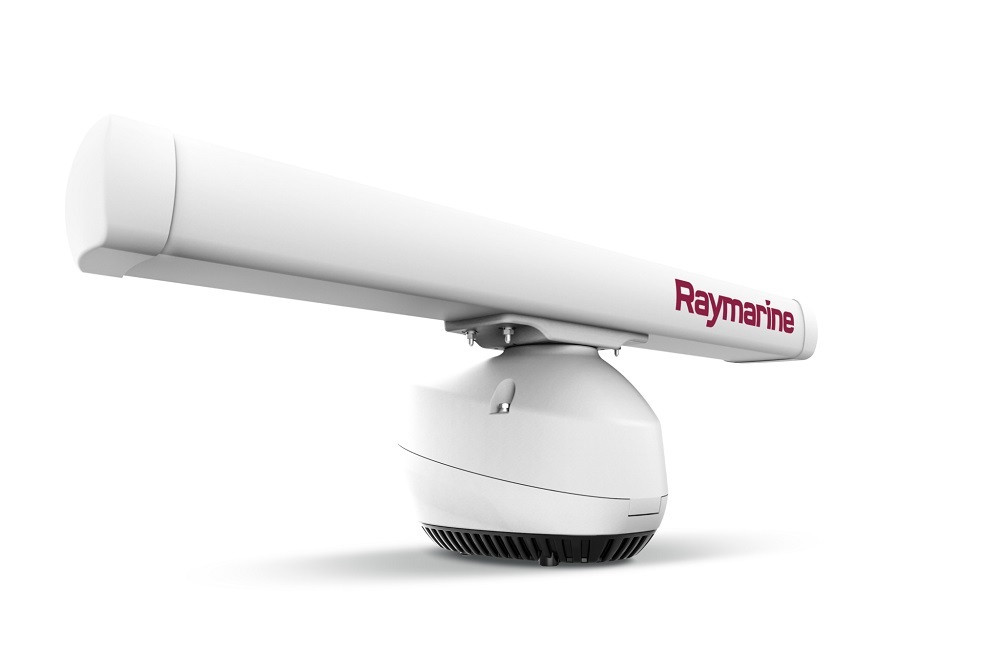

Raymarine 12kW Magnum Radar with 4' Antenna and 15m Cable
Model: T70412- Superior Bird Mode
- Enhanced Radar Imaging
- Best in Class Target Tracking
- True Trails
- Real Time Heading Updates
Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.
Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.
Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.
Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.
Magnum features True Trails target history. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.
Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.
Specifications| Antenna size | 4' 4"" |
| Max Range Scale | 96nm |
| Antenna Specifications | |
| Beam Width Horizontal (Nominal) | 1.85° |
| Effective Horizontal Beam Width (After Antenna Boost Beam Reduction) | Less than 1° |
| Beam Width Vertical -3dB | 25° |
| Antenna Side Lobes (Inside 10°) | < -21dB |
| Antenna Side Lobes (Outside 10°) | < -30dB |
| Rotation Rate | 24 rpm / 48 rpm (Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.) |
| Receiver Bandwidth | Matched digital filter for each pulse length |
| Pulse Length/PRF Settings | 8 |
| Number of Displayed Video Levels | 256 (8-bit) |
| Power specifications | |
| Voltage | 10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems |
| Power Consumption (Typical) | <110W (Transmit) <30W (Standby) <1.2W (Sleep) |
| Targets | |
| Maximum Automatic and Manual MARPA Targets (with Heading Sensor) | 25 |
| Real-Time Heading Refresh (with Heading Sensor) | Yes |
| True Trails (with Heading Sensor) | Yes |
| Compatibility | |
| Axiom / Axiom Pro (LH3.4 or later) | Compatible with full feature set |
| eS Series / gS Series (LH3.3 or later) | Compatible with limited feature set. No automatic MARPA |
| a/c/e/eS/gS Series (LH2 v19.03) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| E-Wide (v2.65) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| C-Wide (v2.35) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode |
| G-Series (v4.66) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| E-Classic (v5.69) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode |
What's in the Box:
- Pedestal
- Denso paste
- Stud x4
- Spring washer x 4
- Cable tightening tool
- VCM100 mounting screw x2
- VCM100 Voltage Converter Module
- 4' Antenna
- Plain washer x4
- Nut x4
- 15m RayNet Radar Cable
