Description

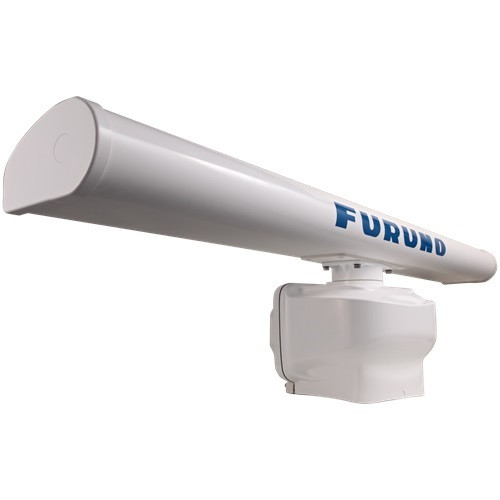

Furuno DRS25AX 25kW X-Band Radar with 4' Antenna. No longer include 15 cable
Model: DRS25AX/4- 25kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- The DRS25AX is a 24V system; a converter will be required for use with 12V power systems
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX ""X-Class"" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS25AX ""X-Class"" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.
The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX ""X-Class."" Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Specifications| Input voltage | 24vDC |
| Optional Antenna | 3.5' or 4' or 6' |
| Horizontal Beam Width | 2.3° with 3.5' antenna 1.9° with 4' and 1.4° with 6' |
| Vertical Beam Width | 22° |
| Maximum Range | 96nm |
What's in the Box:
- Scanner Unit
- Fuse ATV10A60V
- Corrosion-proof pad x 4
- Hex Nut M12 x 8
- Spring Washer M12 x 4
- Flat Washer M12 x 4
- Hex Stud M12x70 x 4
- Installation Manual
- Mounting Template
- Environmental Data Sheet
- XN12A/4 4' Antenna
