Description

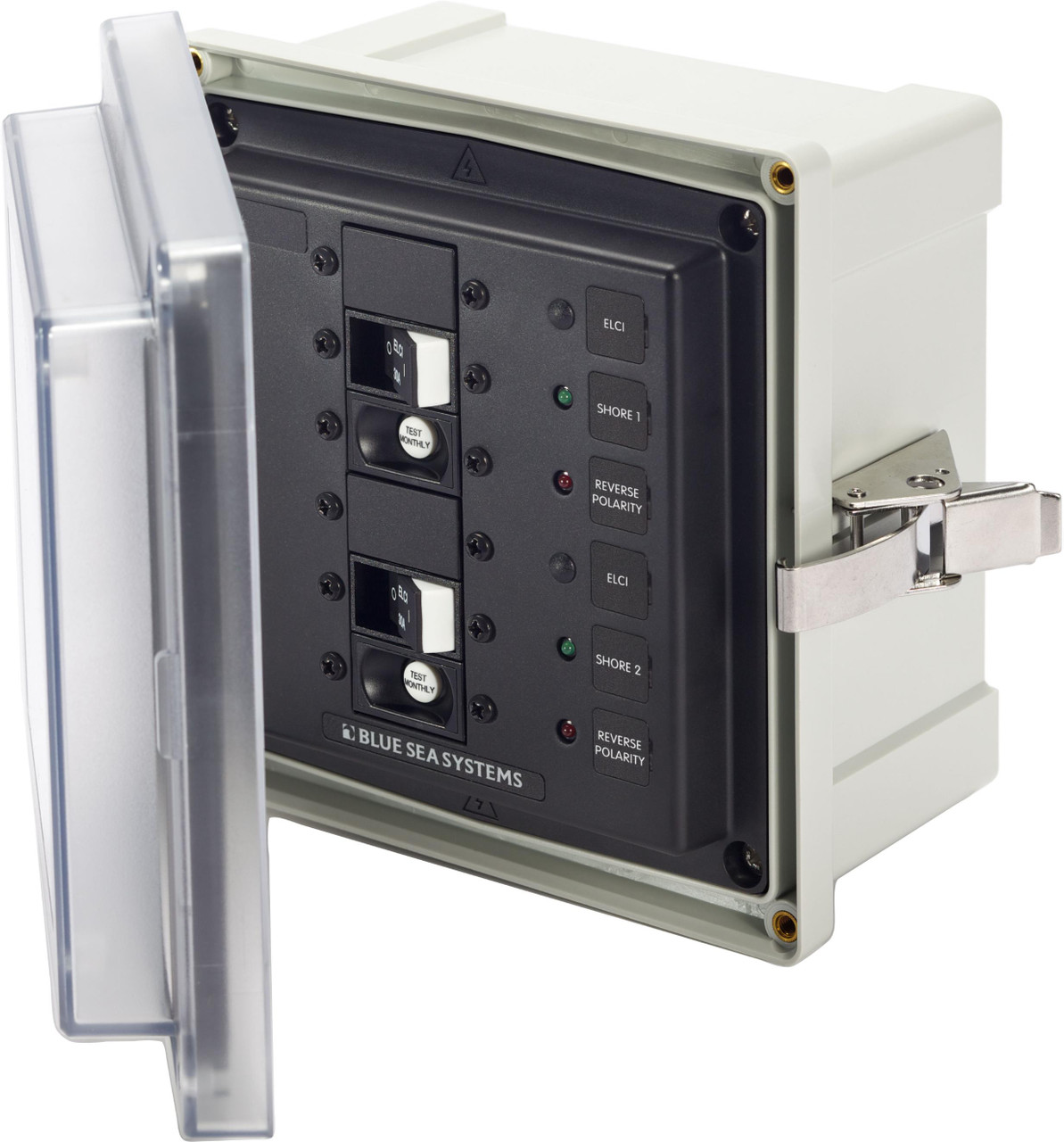

Blue Sea SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main
Model: 3117-BSS
- Includes one Dual 120V AC / 30A ELCI Main
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Specifications
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0"" x 6.0"" x 4.0"" (152mm x 152mm x 102mm) |
| Exterior Overall Dimensions | 7.6"" x 7.4"" x 4.7"" (192mm x 188mm x 120mm) |
| Mounting Hardware | 1/4"" Diameter, #12 (6 mm) |
| Weight | 7.00lb (3.18 kg) |
What's in the Box:
- SMS Panel Enclosure
- ELCI Main 120V 30A, 30mA, 3102 x 2
- small wire glands, 3124 x 2
- medium wire glands, 3125 x 4
- green "ON" indicating 120V AC LEDs, 8034 x 2
- red "Reverse Polarity" indicating 120V AC LEDs, 8066 x 2
- LED plugs x 2
- circuit breaker mounting screws x 12
- backlit circuit label positions x 6
- Source Selection Label Set (10 labels)
- Reverse Polarity labels x 2
- ELCI labels x 2
- Panel Voltage ID label-120V AC
